This program allows the analysis of water flow through a culvert. It performs checks at the entrance (inlet control) and at the exit (outlet control) of the flow using empirical non-uniform equations. It analyzes rectangular, circular, ellipse-shaped and arch-type culverts that may or may not be submerged. Road over-topping checks are also performed. In most cases the Manning formula is used for friction calculations; however, other friction formulas may be used. The program is compatible with American Regulations (ASCE and WPCF) and new Greek regulations (OMOE 11/2002).
Features

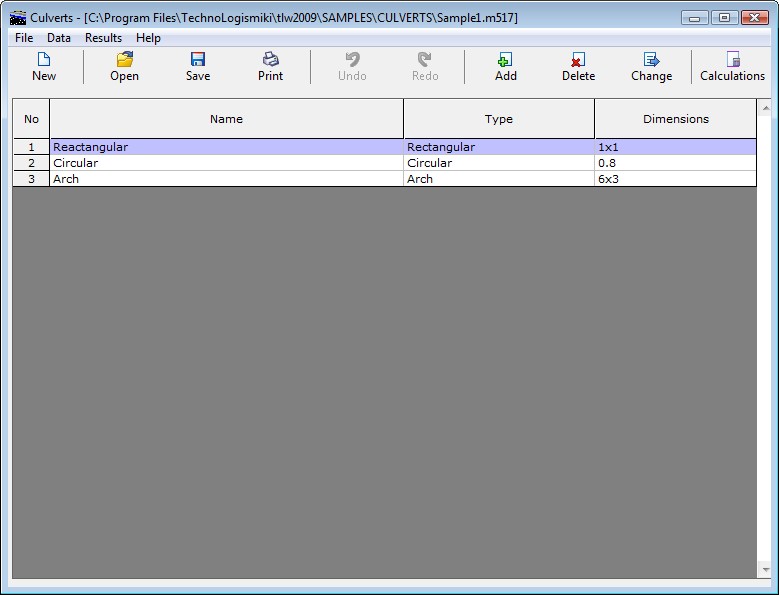

- Solve unlimited number of culverts simultaneously.

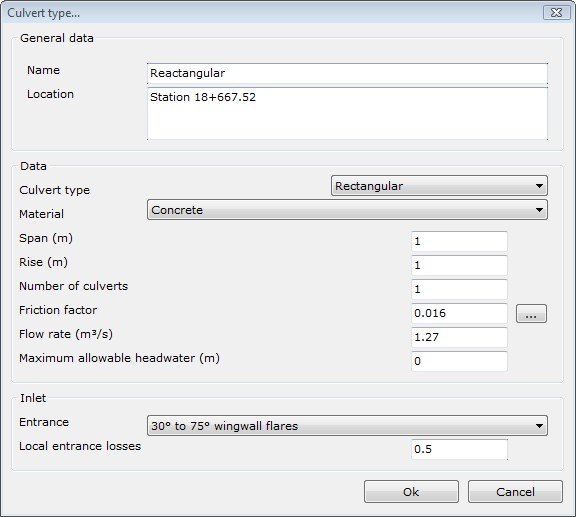

- Supported culvert sections:
- circular
- rectangular
- arch
- horizontal ellipse
- vertical ellipse
- Integrated databases:

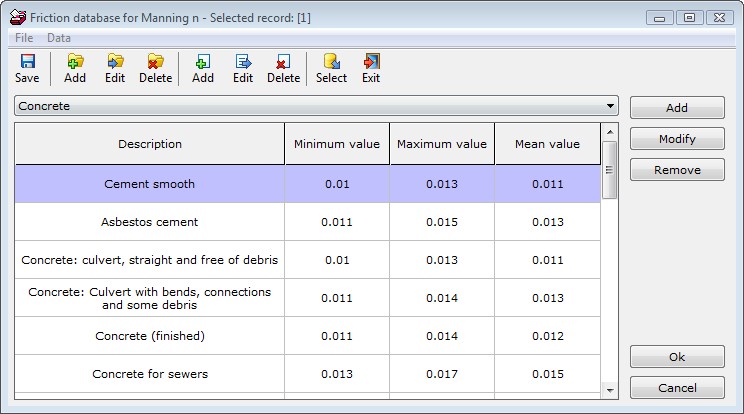

- friction coefficients
- materials
- wingwalls
- entrance and exit conditions
- You can select the friction equation from a wide variety of formulas:
- Manning (constant and variable n)
- Bazin
- Kutter
- Ganguillet-Kutter
- Chezy
- Hazen-Williams
- Darcy-Weisbach

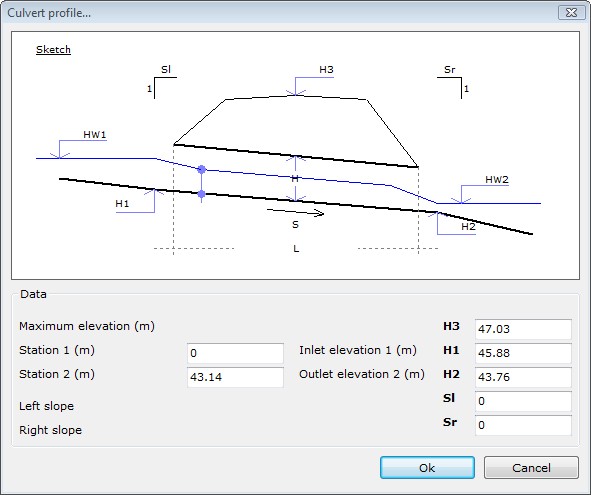

- Customizable culvert profile.

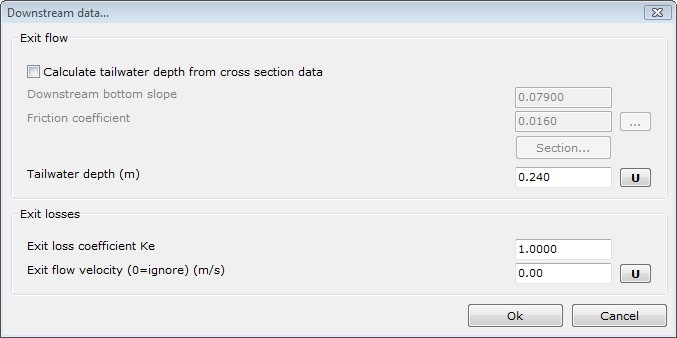

- The water depth at the exit of the culvert may be manually entered or calculated depending on the section shape and the slope at the exit.

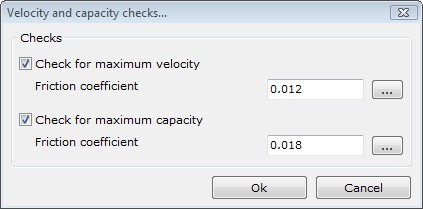

- Automated checks can optionally account for the flow conditions when maximum velocity and / or maximum capacity occur.
- Inline unit conversions support entering data in virtually every unit system. All embedded databases for common variables and/or constants are fully customizable and may be shared between different users and / or programs.
- Formatted Microsoft Word reports.
- Import / export data from / to Microsoft Excel.
- Multilevel undo and redo.
- Compatible with all former versions of the program.

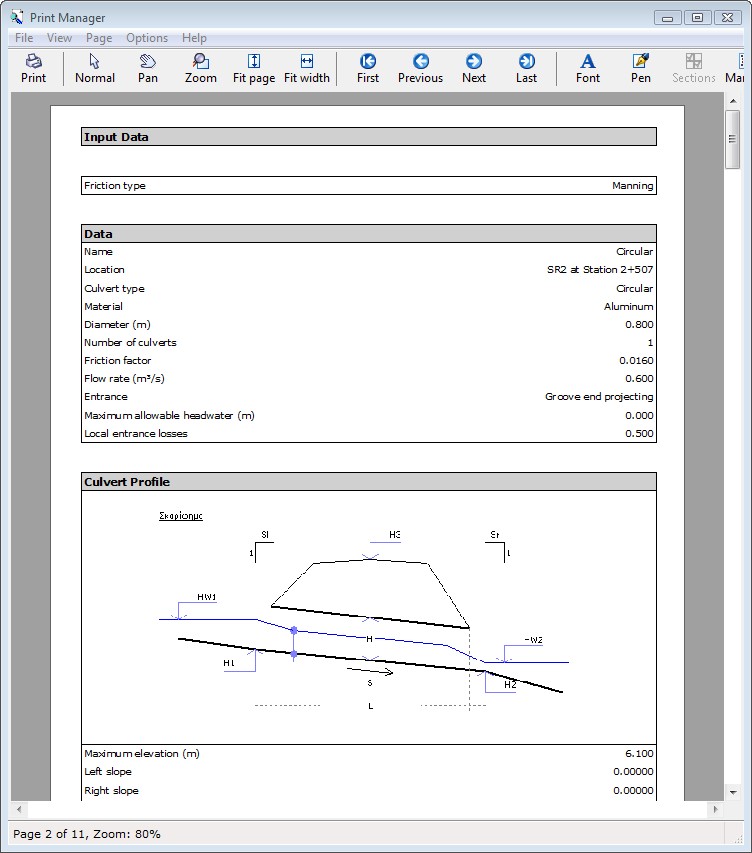

- Professional reports and print outs.
- Tip of the day.
- Full user guide.
- Tutorials.
- Live Update.
- English and Greek interface.
